种类与介绍：Purpose and introduction

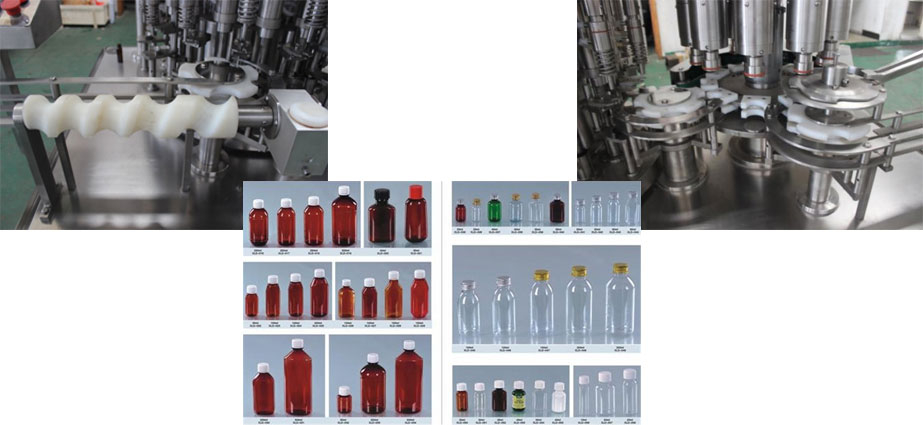

超声波焊接机适用人群于对30-500ML系列作品玻璃板瓶、塑胶瓶的装罐线封好。通过经济往来联系式活塞杆对其进行装罐线，电磁波自由振荡送盖，能否轧盖(铝合金式)或旋盖(塑胶盖)封好，能否和后的出产工艺技术机器连结组成了出产线，不仅能否挑选那些百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.

特质：characteristic

装量精确性，杜尽滴漏问题。缺瓶不装罐。 直流变频空调变频调速。 被动现示数值好处。 机床均按GMP让结构设计。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.

水平技术指标/technical parameters：

型号 model	NQGX30-500
可用尺寸Cutting dimension	30-500ml
生产加工专业能力Production capacity	80-200瓶/分（罐/分钟的英文）80-200 bottles/min (cans/min)
灌装生产线精准度 Filling accuracy	≤±1%
电源开关 Power	380V/50Hz
旋（轧）盖率Spin (rolling) cover rate	≥99%
功率power	3.0 kw
机械化净重量 Machine weight	1500 kg
外形尺寸 boundary dimension	3000*1100*1700mm
