的用途与筒介/Purpose and introduction：

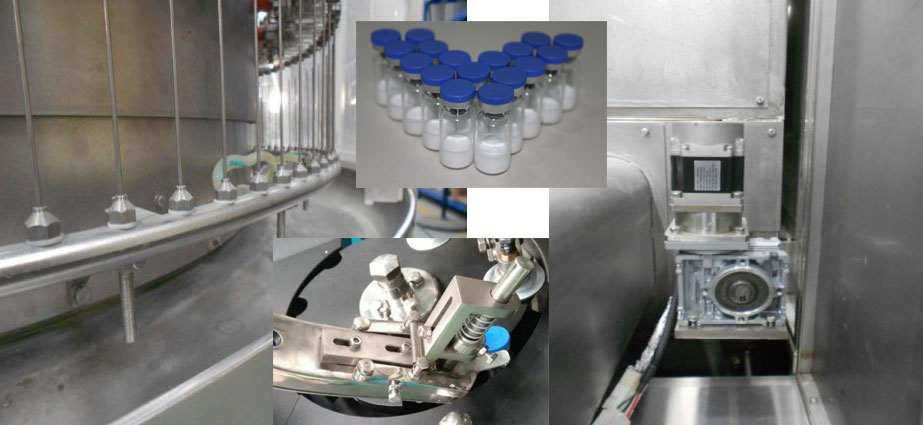

NQGF型西林瓶粉针洗烘预包装轧盖标贴纸签一体化线 由QCL产品立柱式超声检查心动图波洗瓶机、AQMR铁路桥式热气间歇杀菌干燥箱、NQFGX产品数铣罗杆粉剂预包装机、NQ-50轧盖机、NQWTB-120标贴纸签汽轮发电机成，也可单机手机游戏适用。可以于7-25ml金桥铜业跨接线的截面积大小的西林瓶粉针的产量。能完工自动喷淋系统充水、超声检查心动图波粗洗、瓶侧壁水洗、瓶开口处间隔分批间歇水洗、做次吹气、做次新鲜松茸水洗、间隔分批吹气、瓶侧壁吹气、洗、加热、烘箱杀菌去热原、放置冷却、预包装、加塞、轧盖、标贴纸签等二十几道生产工序。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

优势/characteristic：

◆洗瓶机用于机手夹瓶，可用多尺寸规格的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶采用了热气喷针循环往复定位放进去的方式，刷洗目的好，不浪费的行为生物质能。并设在针架防跳动设备，延长喷针放进去可乐瓶的准确无误度，可以减少断针问题的发生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶全部整个雾水管道、喷针完整独立自主分不开，规避了交叉重合严重污染，复合GMP规范标准规范要求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶罗杆前加裝保护措施块，有保护措施罗杆，减掉碎瓶效用；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶分为全局进口量数据同步带，接入拨瓶块运送西林瓶，电脑运行维持可靠的；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆烘烤箱分为自动空调巡环升温，摄氏度一致，节能环保；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆烘烤箱应设防陡然断掉电源保护英文用途。运营安会；Mixer oven has suddenly loses power protection function. Run security;◆干燥箱可配循环往复水冷散热器设施，不耗损率房功率，增多房的压力差不发展的问题降低温度的感觉好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆真空烘干箱可配压力差自动的发展上下调整模式限制房屋和真空烘干箱的压力差不发展可能会导致的高热段偏离，分装间洗烘间环境温度升高级一编的话题；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆真空烘箱涵盖DOP在线论文检测标准接口(涵盖气压、风压、灰尘颗粒在线论文检测口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆恒温干燥箱放凉段可带迅雷在线无菌作用(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆烘烤箱网带可带高周波牵连CIP上线的清洗系统化；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆烘烤箱内腔室可展开全地方、多度角直流电水清洗道路；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆散装机用新国际更好的设计背景，体现了极网络速度，然而分瓶较准，换新产品规格件方便快捷；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆预包装机用于座谈会步进安装驱动器马达安装驱动预包装螺栓自动旋转，装量透彻；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆包装机采取装量的改变直观在触屏屏上保证 ；Mixer packer adopts the load adjustment directly on a touch screen;◆散装机可选装配百级重复式层流罩；Mixer packer optional circulating laminar flow hood best level;◆散装机无瓶退出散装，无瓶没加塞功用。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线进行PLC总掌控、直流伺服的管理器、触碰屏掌控策略，启用不稳可以信赖。触碰屏可界面信息呈现各单机游戏的启用状况，各掌控点的水流量、大气压力、气压、温等界面信息呈现，各旋转开关状况和系统内部出现故障界面信息呈现，系统内部出现故障个人诊断报告和系统内部出现故障剖析及清除策略。使另一生產流程提高自行化掌控，联线极具测控平衡点设备，切实保障生產营养均衡可以信赖。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.会按照的客户的还要，还可供加装：According to the needs of customers, but also available for selection:◆PLC、斯耐德、三凌、台达等加盟品牌操控系统的；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气阻力、水温表及高周波波力度、颗粒a粒子、风力手机在线检测工具、警报、纪要、打印出软件；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、灭菌防护器系统。ORABS, CRABS, aseptic isolator system.

系统产品参数：/technical parameters

主要参数 model

加工程度production capacity

洗瓶及格率Washing bottle percent of pass

洗瓶坏损率Washing bottle breakage

无菌高温sterilizing temperature

分开包装计算误差The repackaging of error

加塞合格证率Gasser percent of pass

气氛层流洁净并用度Laminar air cleanliness

抽真空抽速Vacuum pumping speed

滤波电容量 capacitance

电源开关power supply

总电池容量Total transmission energy

自己的外观宽度boundary dimension

7-25ML国际标准西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
