应用领域与筒介/Brief Introduction：

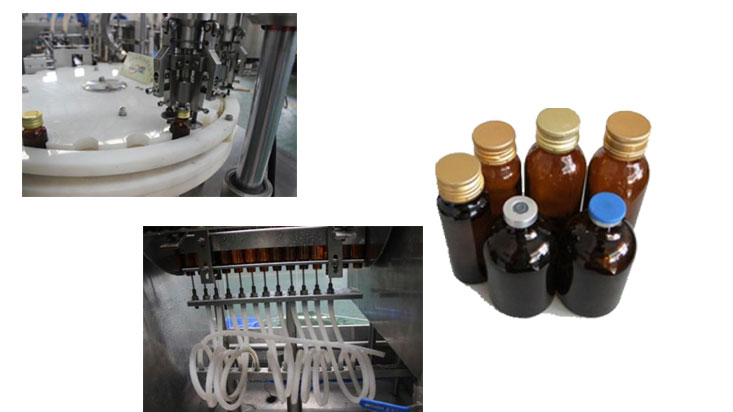

本制造加工线好30ML以上内容内服液的分装制造加工，由供瓶机、辊子洗瓶机、条直线式分装轧（旋）盖机、落地标贴机等机械设备分为，可全自主实现理瓶、洗瓶、分装、上盖、旋（轧）盖、标贴等工步。重点在医药集团、食品类、精细化工的的一些粘液材料的分装联动性制造加工。本制造加工线完完全全合适GMP要。This production line is suitable for more than 30 ml of oral liquid filling production, by for bottle filling machine, roller bottle washing machine, straight-line rolling (spin) cover machine, vertical labeling machine and other equipment, can finish automatically unscramble bottle, bottle washing, filling and cover, cover and label (pad). Mainly used in pharmaceutical, food, chemical industry production of all kinds of liquid filling material of the linkage of. This production line in full compliance with GMP requirements.

特征 /Characteristic：

◆形象材料做为304不銹钢材质，灌装线部分组采316L不銹钢材质，按照GMP规则。Outer material is 304 stainless steel,and the material of filling part is 316L stainless steel, it complies with GMP regulation ◆可应用多金桥铜业跨接线的截面积大小工作。can be situable for several bottle specs.◆启动动态平衡，的噪音小，罐装正确 。Stable running,low noise,precise filling.◆破瓶率低，产品合格证书率高，耗能少。low bottle breakage ratio,high qualified product ratio,low energy consumption.◆这条的自动线可电脑单机操纵和直营操纵。The whole line can single machine control or interlock control.

科技基本参数/Main Technical Parameters：

使用规格参数Filling Volume	30-150ML
灌装线头数Productivity	低速度4头            𝕴;  高速收费站8头 4 at low speed            &nbs🍌p;h♛igh speed 8
出产能分析力	低速行驶30-50瓶/分   &🥂nbsp; 高速公路70-100瓶/分 30-50bottles/min  70-100bottles/min
灌装线计算精度Filling Precision	≤±1%
旋盖率Capping Rate	≥99%
24v电源Power Supply	220V/50Hz
输出功率Power Supply	2.5kw
生产的线总长Dimension	7500*1000*1700MM
