妙用与介绍：/Purpose and introduction

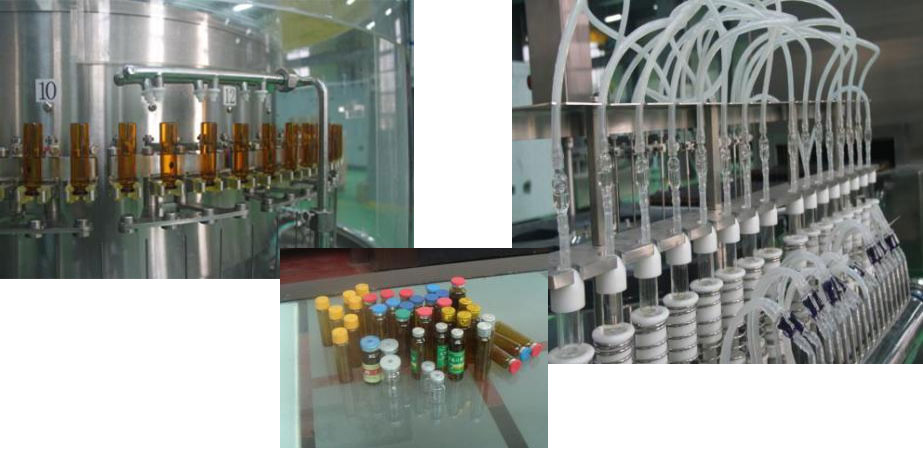

口服方式方式药液洗烘灌轧连动线由旋转式彩超波洗瓶机、铁路隧道式暧风 反复消毒烘烤箱、口服方式方式药液罐装轧盖机等构成的，比较适合于 5-30ml 等各不相同规 格口服方式方式药液瓶的工作。可完整对医疗耗材工作中安瓿瓶淋水、彩超波刷洗、冲水、充 气、烤干消毒、放置冷却、罐装、轧盖等生产技术步的连动运作。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

特征:/characteristic

◆洗瓶机应用机械设备手夹瓶，可用四种型号规格的矿泉水瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶适用热气喷针往复运动定位放方式方法，擦拭功效好，节约用电生物质能。并具有针架防抽动配置，升高喷针放空瓶的确切度，增多断针后果的发生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶全部水雾管线、喷针全部孤立分开单独进行，以免了交错式生态破坏，达到GMP规程规范要求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶挤出机螺丝杆前还可以加装加载块，有保护好挤出机螺丝杆，变少碎瓶功能Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶主要采用综合进口清关同样带，无线连接拨块推送服食液，运营固定正规In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆真空烘箱选用红外线加温管，不锈钢装饰管加温管双层玻璃加温热度粗糙性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆灌装线轧盖机要选配卫浴陶瓷泵、304不绣钢泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆罐装无瓶止灌，无瓶不轧盖功能性。Pieces filling without bottle filling, no bottle no rolling function.◆整线适用PLC总控住、调频器、触碰屏控住高技术，主动作业维持稳定。触碰屏可表现信息各单机游戏的主动作业环境，各控住点的静水压、大气压力、静压、平均温度等表现信息，各按钮环境和问题表现信息，问题自行诊断仪和问题研究及避免方式。使整体生孩子操作过程完成主动化控住，联线兼具三机自动化控制动平衡机仪器，确认生孩子均衡教育稳定。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.通过企业客户的都要，还可供标配：According to the needs of customers, but also available for selection:◆西门子程序、德力西、西门子、台达等项目调整程序；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气心理压力、温度及超音波波挠度、埃尘激光束、风量在线免费查测、提醒、纪要、打印文件系統。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌操作隔离霜器体统。Mixer ORABS, CRABS, aseptic isolator system.

技术水平运作：technical parameters

适合样式Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
包装精确度Filling accuracy(%)	≤ ± 2.5
灌装线头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖合格证书率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
