的主要用途与介绍/Brief Introduction：

设备是成为内服液磨砂夹丝玻璃酒瓶的新商品，彻彻底底完成了常有内服液磨砂夹丝玻璃酒瓶的不良现象结果。四种灌封机所配的材料瓶，之所以不要洗瓶机、烤干机，更不要消毒杀菌，就可以简单灌封。设备全智能理瓶、进瓶、装罐，装罐量不稳，无漏滴，无瓶不装罐。上盖、封口处率电动车续航100%。此机方法先进的，重量小、正常运作不稳、噪音低，运行处理、洗便宜等优缺点，充分适合GMP细则。This machine is a new product instead of oral liquid bottles, thoroughly solved before the adverse effect of oral liquid glass bottle. The used plastic bottles, filling and sealing machine not only don't need to bottle washer, dryer, more don't need disinfection, can be directly potting. The machine is fully automatic unscramble bottle, bottle feeding, filling, filling volume stability, no LouDi, no bottle no filling. Cover and sealing rate can reach 100%. This machine technology is advanced, small volume, stable running, low noise, convenient operation and maintenance, cleaning, etc, in full compliance with GMP standard.注：本应用有低速行驶和髙速两者产能供您抉择。Note: this model has two kinds of low speed and high-speed production for your choice.

性能 Characteristic

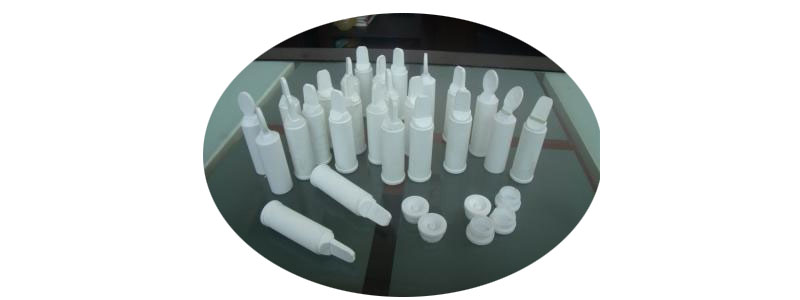

◆远程服务器适宜于各项易折瓶内服液检定罐装和封口处。The machine is suitable for all kinds of folding bottles of oral liquid filling and sealing of measurement.◆各种电商器件均运用闻时尚产品品牌牌。All electrical components adopt famous brand◆滤油机方法精确性简便，无瓶不装罐，剂量*。It has intuitive and convenient operation, no bottle no filling, measuring precision.◆易折塑胶片瓶灌封机的注意架构与目的Easy to fold the main structure and principle of plastic bottle filling and sealing machine◆NFGFY型胶囊液易折塑料管瓶灌封机主耍理瓶器、理盖器、主传动链操作系统、同歩带气隙送玻璃瓶置、空罐检漏裝置、分装中介医疗培训公司、排除裝置、热融封中介医疗培训公司、气动弹簧机械制造手夹瓶中介医疗培训公司、伺服控制器电机马达气隙上瓶中介医疗培训公司与出瓶中介医疗培训公司等成分。Type NFGFY oral liquid is easy to fold the plastic bottle filling and sealing machine main GaiQi bottle opener, and the main transmission system, the synchronous belt clearance to send bottle device, empty bottle leak detection device, filling body, eliminating device, hot melt sealing mechanism, pneumatic mechanical fingers bottle gap on the bottle structure, servo motor and a bottle of institutions, etc.◆电脑使用的的服用液易折pp瓶子、盖都是定洁净度区生产的的，该有药粉材允许证，于是瓶身与底盖经表达和"去劳务外包"后可直接的渗入灌封间。根据理盖器、理瓶器的自主定项归类，排除选择性底盖及瓶身底口朝下的瓶，使定项后的包材喂料有规定地渗入推送轨道交通中。Machine using oral liquid is easy to fold the plastic bottles, cover a certain production of clean area, should have the medicine packaging material license, so the bottle and the bottom cover after transfer and "outsourcing" can go directly into the potting. By Richard GaiQi, automatic directional arrangement of bottle opener, eliminate reverse bottom cover and the bottom of the bottle mouth bottle at the bottom, after making the orientation of packaging material feeding regularly into orbit. ◆专向后内服液易折塑瓶在运送轮轨第二排Directional oral liquid after folding plastic bottles in conveying rail out easily

工艺叁数technical parameters：

型号model	NLGFY-40	NLGFY-80
装量条件The load range	5-100ML
生产能力production capacity	20-40瓶/分	50-80瓶/分
粘口率Hot sealing intensity	》99%
装量误差值The load error	《1.5%
破损掉镀率damage rate	《1.0%
电机功率power	2KW	3KW
电源开关Power Supply	380V 50Hz/220V 50Hz
外形尺寸boundary dimension	2700*1100*1900mm	3000*1480*1900mm
重 Weight	700Kg	800Kg
