主要用途与筒介/Brief Introduction：

这个机器选用格外三通管件装罐线阀，选用作水剂和膏霜类企业产品的装罐线，格外对高107硅橡胶消费黏性废料（如浓酱、小米辣酱、番茄酱、种衣剂、微乳剂、浮动剂等）的感觉相比很深，且精准度更高。这个机器选用PLC可程序编程操纵，搭配69英寸触屏屏组队游戏界面系統，全面推行自然化进瓶，自然化装罐线，自然化出瓶，机械，自动元器件均选用亚太世界知名品牌，有效加强组织领导了好品质的特性和长时间比较稳定的特性。本设施组成部分不方便，实际操作不方便，是中国大陆自然的重视高107硅橡胶消费黏性废料的装罐线设施。这个机器购置了解决办法漏滴与磨砂的装罐线闷头，有效加强组织领导装罐线结束之后后无漏滴，无磨砂。Filling valve, the machine USES special tee is suitable for the filling agent and cream products, especially for high viscosity material (such as thick sauce, chili sauce, tomato sauce, indicated, micro emulsion, suspending agent, etc.) of the effect is obvious, and high precision. The machine USES PLC programmable control, with 6 inch touch screen man-machine interface system, implements the automatic into the bottle, automatic filling, automatic bottle, electric, pneumatic components adopt international brand, to ensure that the performance of the outstanding quality and lasting stability. This equipment has simple structure, convenient operation, is the ideal filling equipment for high viscosity material. The machine is equipped with prevent drip with wire filling cocks, ensure filling after the completion of a drip-tight, no drawing.

性能/Characteristic：

◆管控设计——通过三凌PLC管控设计，包装的用药量重复调节。Control system adopt mitsubishi PLC control system, filling dose random tweaks◆使用使用软件画质——6屏幕尺寸彩屏手触式使用使用软件画质，直观性简洁、健康安全正规Interface - 6 inches color hand touch interface operation, intuitive and simple, safe and reliable◆能力问题解决——排料有防渗漏系统设计，可可根据物料管理优点享有下潜罐装能力。（此能力能选取）Improvements - blanking drip tight device, according to the material properties have diving filling function. (this function can be chosen)◆电器产品组件——均运用全球前十强企业品牌，切实保障生产设备的健康安全信得过、准确无误高朝；Electrical components adopt international famous brand, to ensure the equipment safe and reliable, high accuracy;◆机械厂配件——设备配件均选用优质的304不锈钢装饰管质作,比如必须交往货品都可以选用316L另缴费用。Mechanical parts, machine parts are made of high quality 304 stainless steel material can be used if necessary contact 316 l in extra costs.◆运算在线检测——实时的运算，对工作中产销量形象化表示。Counting test, real-time, intuitive reflect the yield of work.◆灌装线在线检测——无瓶不灌、瓶数不怎么不灌Bottle filling test - no bottle no filling, not enough◆检修现状——机器符合标准GMP必须，可随意拆御、清洁检修。Maintenance - the machine is in line with the GMP requirements, easy disassembly, cleaning maintenance.◆置换規格——拆换分装規格时，只需要简约进行调节，快些OK。Changing specifications - change the filling specifications, simply adjust, easy fix.◆健康标准增加——增加了健康标准架构设计，使广州POS机的控制环境变得更加干净的日常保洁。（此健康标准增加可能选择装配）Environmental protection configuration, configuration framework of environmental protection, make the operation of the machine environment more clean sanitation. (the environmental protection configuration can be selected)

新技术主要参数/technical parameters：

装灌头数The number of filling head	8头（自选4、6、8、10꧟、1两个罐装头）8 head (optional 4, 6, 8, 10,꧂ 12 filling head)

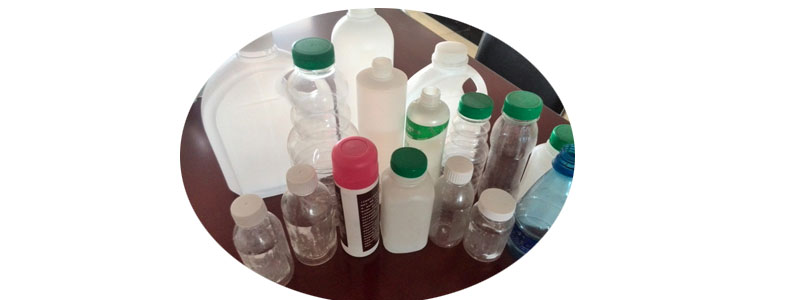

采用瓶径 Applicable bottles Drive	Ф33-Ф100 mm
记量计算精度measure precision	±1%
罐装数量Canned capacity	150-1000ml
生孩子意识Production Capacity	2400-4000瓶/小时英文2400-4000   bottles per hour
气源压力bleed pressure	0.7-0.9mpa
电    源Power Supply	380 伏/50 HZ
总 功 率The total power	0.5 kw
外形尺寸 boundary dimension	6000×850×1800 mm
重    量Weight	500kg
