的主要用途与筒介/Brief Introduction：

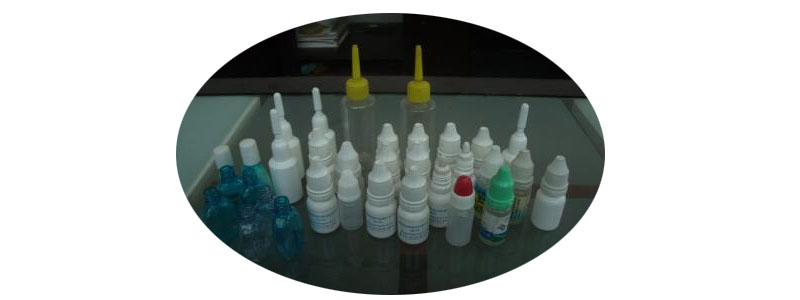

该设备适用性于2-30ML各项材质原料的一个圆形扁形塑料材质或波璃瓶的眼蓝药水罐装、光学烟油等小服用量罐装.该设备由高精密度等级气缸量程设备提高量程等分盘追踪准确定位上塞上盖;加快度气缸机械传动装置提高旋盖头的调节功能;恒转距旋盖;排泄泵的记量罐装;接触屏操纵.无瓶不罐装,不用内塞,外盖.具追踪准确定位精度,机械传动装置稳定,守护塑料瓶盖,的记量准.进行操作简略等特点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

特性/Characteristic：

◆微网吧电脑确定、装量精准度、操作方法非常方便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆台式主机电机转速可来有级变頻调速器。the mainframe running speed is stepless frequency conversion.◆研发量重新一定量调控。the product quantity can be controlled. ◆多种不同报警信息提示工作(如低大气压力。无分装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆半一键宕机工作，对某一轨道组件显示连续式无灌装线、无内塞前提可半一键宕机。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

枝术参数值/Main Technical Parameters：

支持外形尺寸Filling Volume	2-30ml
制造效率Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
罐装gps精度Filling Precision	≤±1%
电源模块 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自动的上塞率Stoppering rate	≥99%
安全阀Air Supply	1.3 m3/h    0.4-0.8Mpa
工作电压 Power	2.0 kw
电脑毛重Weight	550 kg
内部结构的尺寸Dimension	1800*1000*1500mm
